Under the hood

The big picture — all the pieces together

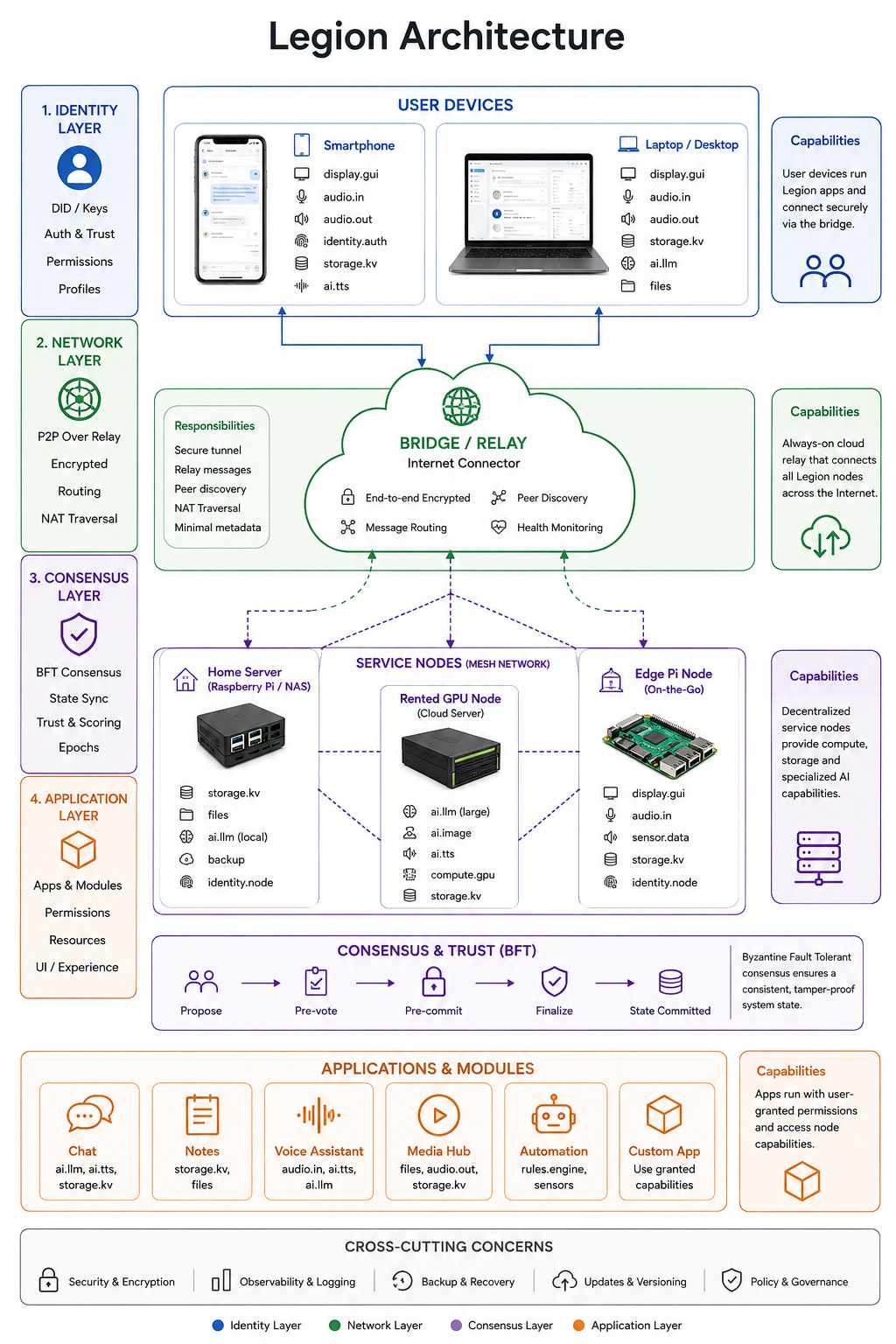

Complete architecture diagramleg-full-architecture

A large, comprehensive architecture diagram of Legion. Top row: 'User Devices' (phone, laptop) with arrows pointing down. Middle: 'Bridge / Relay' as a central cloud. Bottom: 'Service Nodes' (home server, rented GPU, Pi) in a mesh network. Each device has small capability labels (ai.llm, audio.in, etc.). Layers are color-coded: blue for identity, green for networking, purple for consensus, orange for apps. Title at top: 'Legion Architecture'. Clean, detailed, professional. White background. Think 'system architecture diagram from a technical blog post'.

Legion is built in layers, like a cake. Each layer depends only on the layers below it. This means you can understand one layer without needing to fully understand the others.

Let's go from the bottom up.

Layer 1: The Platform Abstraction Layer (PAL)

What it does: Provides a uniform interface to the operating system so Legion can run on any platform (Linux, Windows, embedded microcontrollers, etc.) without changes.

How it works: Instead of calling Linux functions directly, Legion calls function pointers stored in a structure called legion_pal_t. At startup, the correct implementation is loaded (POSIX for Linux, Win32 for Windows, FreeRTOS for microcontrollers).

Think of the PAL like a universal power adapter. The device (Legion) plugs into the adapter (PAL), and the adapter plugs into the wall (the OS). Same device, different outlets.

Key operations it abstracts:

• Threading and synchronization (mutexes, locks, condition variables)
• Networking (TCP, UDP, multicast)
• File I/O
• Time
• Cryptography (hashing, signing, encryption)
• Memory allocation

Where in the code: src/pal/pal_posix.c, src/pal/pal_win32.c, etc.

Layer 2: Core types and utilities

What it does: Defines the basic data structures that every component uses.

Key types:

• legion_cohort_id_t — a 32-byte identifier for the group
• legion_peer_id_t — a string identifier for a node
• legion_command_t — a unit of work or data change
• legion_capability_t — a description of what a node can do
• legion_vec_t — a dynamic array (like a list that grows)
• legion_map_t — a hash table (key-value store)

Utilities:

• Logging — a callback-based logger (you provide the output destination)
• Error codes — a standard set of error values (LEGION_OK, LEGION_ERR_TIMEOUT, etc.)

Where in the code: include/legion/legion_types.h, src/util/vec.c, src/util/map.c

Layer 3: Wire format and transport

What it does: Defines how data is serialized (packaged into bytes) for storage and network transmission, and how it's framed for UDP transport.

Wire format: A custom binary format with:

• An 8-byte header (magic bytes, version, message type, payload length)
• Repeated “field-value” pairs (similar to Protocol Buffers)
• Forward compatibility (unknown fields are skipped, not rejected)

LNMP (Legion Node Message Protocol): A framing layer for UDP packets:

• 36-byte header (sender ID, sequence number, timestamp, flags, checksum)
• Payload up to 1464 bytes (fits in one standard Ethernet packet of 1500 bytes)

Why custom? JSON is too big. msgpack is good but Legion wanted full control over versioning and field evolution. The custom format is about 4× smaller than JSON and fully auditable (no external library to maintain).

Where in the code: src/core/wire.c, src/core/lnmp.c

Layer 4: Discovery and networking

What it does: Finds other nodes on the network and maintains the peer list.

Three layers of discovery:

1. Multicast — shout “I'm here!” on the local network
2. Seed nodes — contact a known address for a peer list
3. Gossip — share peer introductions organically

Transport: A shared UDP transport layer that handles:

• Listening for incoming messages
• Sending outgoing messages (multicast and unicast)
• Maintaining a peer registry

Where in the code: src/core/discovery.c, src/core/lnmp_transport.c

Layer 5: Identity

What it does: Manages cryptographic identities for users and devices.

User identity:

• Master seed (256 bits) → 12-word backup phrase (BIP-39)
• Key hierarchy (SLIP-0010): master key → device keys → tier encryption keys → protocol keys
• DID format: did:legion:user:<base58_public_key>
• DID document: a list of all registered devices and their certificates

Device identity:

• Each device generates its own keypair
• DID format: did:legion:node:<base58_public_key>
• Service certificate: user signs a certificate granting the device specific capabilities

Device pairing:

• PIN-based authentication (SPAKE2 protocol)
• Biometric confirmation (fingerprint, face ID)
• One-time transfer of device key material

Where in the code: src/identity/slip0010.c, src/identity/did_document.c, src/identity/device_pairing.c, src/identity/node_identity.c

Layer 6: Consensus and trust

What it does: Ensures all nodes agree on the same data and tracks how much each peer can be trusted.

Consensus engine:

• Commands are ordered in epochs (numbered rounds)
• Each command gets a hash chain link (prevents tampering)
• Trust scores adjust based on peer reliability

BFT (Byzantine Fault Tolerance):

• Optional Tendermint-style protocol for critical decisions
• Three phases: propose → pre-vote → pre-commit
• Requires 2/3+ agreement
• Three operating modes: observation, hybrid, full BFT

Trust manager:

• Rolling history of 4 epochs
• Anomaly detection (sudden reputation drops)
• Time-based decay (trust fades without activity)
• Reliability classification (healthy, degraded, unhealthy)

Where in the code: src/core/consensus.c, src/core/bft.c, src/core/trust.c

Layer 7: Capability management

What it does: Tracks what each node can do and routes requests to the right node.

Capability advertisement: Nodes announce their capabilities in beacons.

Delegation selection:

1. Query the network for a matching capability
2. Check focus (which node is the user at?)
3. Check trust (is this node reliable?)
4. Delegate the request

Where in the code: src/core/module_delegate.c

Layer 8: Plugin system

What it does: Allows nodes to extend their functionality with modular plugins.

How it works:

• Plugins declare a manifest (JSON) listing their methods and access controls
• The plugin manager loads manifests and routes calls
• Plugins can be chained (output of one feeds into another)
• Each method declares which data tier it can access

VM integration: The Legion VM has built-in opcodes for calling plugins:

• CALL_PLUGIN — invoke a plugin method
• LIST_PLUGIN_METHODS — discover what methods a plugin offers

Where in the code: src/core/plugin.c, src/modules/*/

Layer 9: Storage

What it does: Persistent storage for node state, data, and configuration.

Key-value store:

• Data stored as key-value pairs
• Tier-aware (encrypted at higher tiers)
• Cohort-shared (synced across all nodes)

Object store:

• Larger data objects (files, snapshots)
• Content-addressed (identified by content hash)

Where in the code: src/core/objectstore*.c, src/core/plugin.c (kvstore functions)

Layer 10: The Legion VM

What it does: A custom virtual machine for executing internal system programs.

Why a custom VM? General-purpose languages (like JavaScript) can't guarantee:

• Deterministic execution — every node must produce identical output
• Instruction-level metering — each opcode has a measurable cost
• State snapshotting — the entire VM state can be serialized for handoff
• No ambient OS access — pure state transition, no file system or network access

Opcodes (~100+):

• Data operations (STORE, LOAD, DEL, EXISTS)
• Stack operations (PUSH, POP, DUP, SWAP)
• Control flow (JMP, JZ, CALL, RET, LOOP)
• Resource checks (HASRES, REQRES, IFCAP)
• Trust operations (TRUST, IFTRUST, QUORUM, VOTE)
• Distributed compute (MAP, REDUCE, SCATTER, GATHER, SYNC)
• Time operations (EPOCH, WAIT, CRON, EXPIRE)
• Tier operations (GET_CURRENT_TIER, ELEVATE_TIER, CREATE_TIER)
• Plugin invocation (CALL_PLUGIN, LIST_PLUGIN_METHODS)

State: 16 registers, a stack, program counter, flags, key-value memory, call stack, trust map, locks, resources, transactions, proposals, and promises.

Where in the code: src/vm/ (entire directory)

Layer 11: The application platform

What it does: Runs user-written applications (TypeScript/JavaScript) on top of the core runtime.

Two-tier architecture:

1. Legion VM — internal system code (consensus, trust, tiers)
2. JS Engine — user applications (written in TypeScript)

JS engine abstraction: A vtable (function pointer table) that lets Legion support different JS engines on different platforms:

The legion global object: Auto-generated based on available capabilities. Missing capabilities are undefined, so apps can check before use.

App lifecycle:

1. Fetch bundle by content CID
2. Verify content hash
3. Verify developer signature
4. Show permission prompt
5. Load into JS engine
6. Run

Where in the code: src/js/legion_js_engine.h, src/js/legion_js_global.c, src/js/legion_js_app.c, src/js/app_cache.c, src/js/app_signing.c

Layer 12: Display GUI

What it does: Renders the visual interface for Legion apps.

Three tiers:

1. Tier 1 — custom minimal renderer (ESP32, e-ink)
2. Tier 2 — litehtml (Raspberry Pi, embedded Linux)
3. Tier 3 — WebView (smartphone, desktop)

Event model: User interactions flow from renderer → event queue → JS engine. Apps register event handlers and respond to clicks, input, scroll, etc.

Asset system: Content-addressed asset references (legion-asset://sha256:...) resolved to inline data before rendering.

App handoff: VM state serialization for seamless device transfer.

Where in the code: src/plugins/display_gui.c, src/ui/renderer_litehtml.c, src/ui/asset_resolver.c, src/ui/vm_snapshot.c

Layer 13: Bridge and cloud infrastructure

What it does: Provides WAN (wide-area network) connectivity between devices on different networks.

Bridge node:

• Runs as a daemon (legion-bridge)
• Listens on TCP port 7575 for incoming connections
• Manages encrypted tunnels between remote devices and home nodes
• Multi-user isolation (each user's traffic is separate)
• DID-based authentication (not passwords)

Registry:

• legios.cloud hosts a bridge discovery service
• Providers register their bridge endpoints
• Users discover bridges automatically

Where in the code: src/bridge/, src/registry/

The code layout

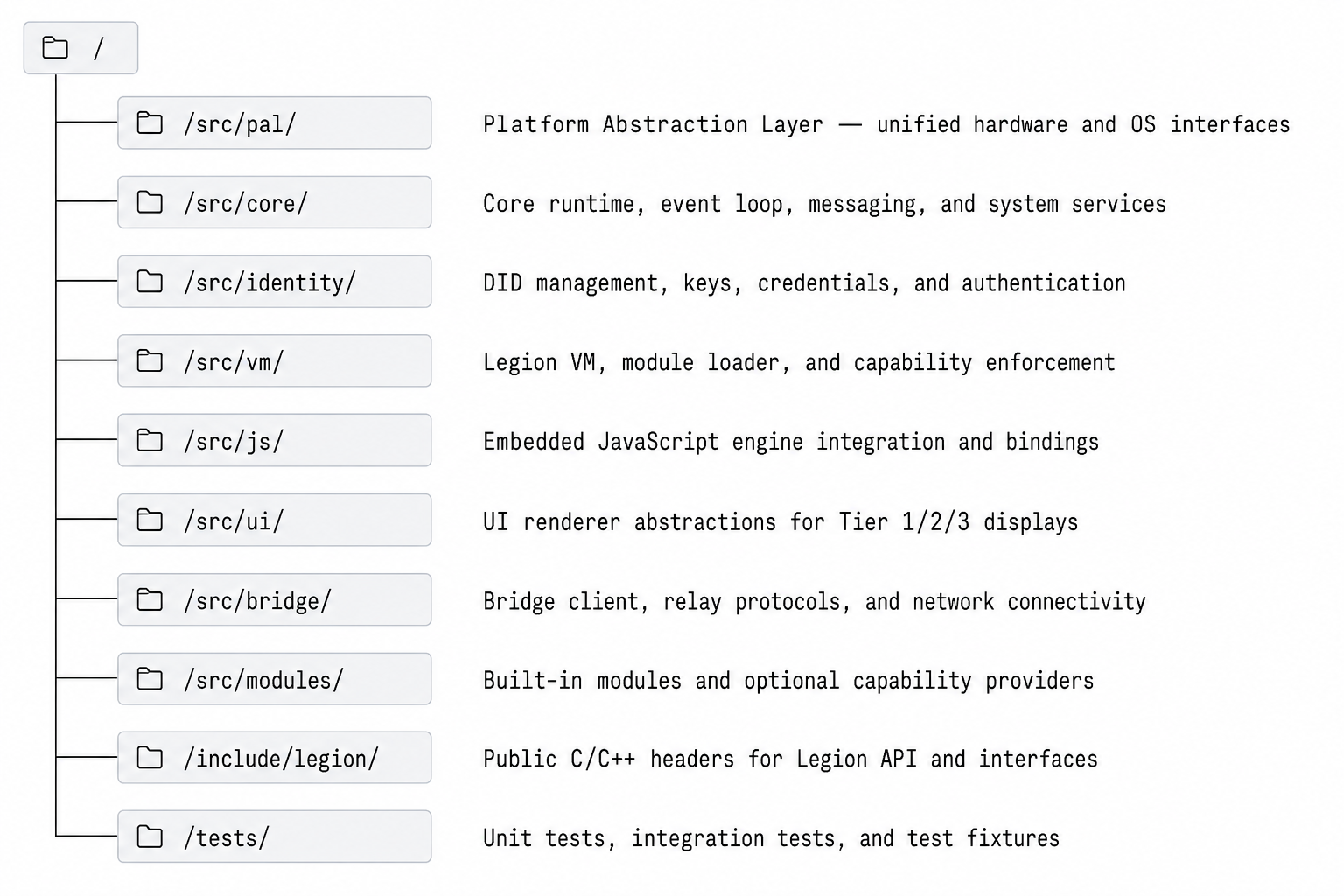

Folder tree diagramleg-code-layout

A simplified file tree showing the main directories of the Legion codebase: /src/pal/, /src/core/, /src/identity/, /src/vm/, /src/js/, /src/ui/, /src/bridge/, /src/modules/, /include/legion/, /tests/. Each directory has a one-line description next to it. Clean, indented tree structure. Monospace font. White background, light gray directory boxes. Think 'project structure diagram from documentation'.

include/legion/     ← Public API headers
src/
  pal/              ← Platform Abstraction Layer
  core/             ← Consensus, discovery, trust, delegation
  identity/         ← User and device identity
  vm/               ← Legion virtual machine
  js/               ← JavaScript engine integration
  ui/               ← Rendering, assets, snapshots
  bridge/           ← WAN relay daemon
  modules/          ← Capability modules (audio, AI, etc.)
  plugins/          ← Built-in plugins
tests/              ← Test suite
platform/           ← Platform-specific code (iOS, Android, etc.)
vendor/             ← Vendored dependencies (sqlite3, quickjs, etc.)

How a request flows — the full journey

Let's trace a complete request from start to finish to see how all the layers work together.

Scenario: You type “Hello” in the Legion chat app on your phone.

1. Display GUI (Layer 12): Your tap is captured as a UI event.
2. JS Engine (Layer 11): The event is delivered to the chat app's onEvent handler.
3. Capability delegation: The app calls legion.ai.llm.chat({ message: "Hello" }). This goes through the capability manager (Layer 7).
4. Delegation selection: The system finds the orchestrator node that has ai.llm.
5. Identity (Layer 5): The request is signed with your device key.
6. Trust (Layer 6): The orchestrator's trust score is checked (0.9 — fully trusted).
7. Consensus (Layer 6): If needed, the command enters the epoch consensus process.
8. Transport (Layer 3): The request is encoded in wire format, wrapped in an LNMP frame, and sent over TCP to the orchestrator.
9. VM (Layer 10): The orchestrator's VM processes the command (calls the LLM plugin).
10. Plugin (Layer 8): The AI module receives the text and generates a response.
11. Response flows back through the same layers in reverse.
12. Display GUI (Layer 12): The reply is rendered on your smartphone screen.

You see: you typed “Hello” and got a response. Behind the scenes, 13 layers of infrastructure made that happen — all without a single central server.

The four data tiers — under the hood

Remember the four privacy layers? Here's how they're enforced technically:

Each tier has its own encryption key, derived from the master seed using the SLIP-0010 key hierarchy. Data flows downward only — from Tier 1 to Tier 4 — through authenticated pipes. Higher tiers cannot read lower-tier data.

Summary — the layer cake

What comes next

You now have the complete picture — from the high-level concept to the deep technical architecture. The glossary is your reference for every term mentioned in these pages.

If you want to dive deeper into any specific component, the specs directory contains detailed technical specifications for each layer.
